How Does a Power Bank Work? Portable Charging Explained

Running out of battery is inconvenient whether you are commuting, travelling, or relying on your phone for directions. A power bank gives you a portable source of stored energy, but understanding how does a power bank work helps you use it more effectively and avoid common charging problems.

This guide explains what happens inside a power bank, how do power banks work with different devices, how to charge one correctly, and how to use the power bank safely. It also covers troubleshooting, battery care, and practical signs that a unit may be reaching the end of its useful life.

What Is a Power Bank?

A power bank is a portable, rechargeable battery pack that stores electrical energy so you can charge USB-powered devices when a wall socket is not available. Depending on its output, it may power phones, tablets, earbuds, cameras, handheld consoles, or even some laptops.

Inside, most models use lithium-ion or lithium-polymer cells. Capacity is usually shown in milliamp-hours (mAh), commonly from about 5,000 mAh to 20,000 mAh or more. Capacity describes how much energy the battery can store; it does not tell you how quickly a connected device will charge.

Most power banks include USB-A or USB-C ports, a charging input, and LEDs or a display showing remaining capacity. A battery management system monitors voltage, current, and temperature to reduce risks such as overcharging, deep discharge, overheating, or short circuits.

For air travel, the original guide notes that power banks are generally carried in cabin baggage rather than checked luggage, with capacity limits commonly expressed in watt-hours. Check your airline and current aviation rules before travelling because approval requirements can vary by battery size and carrier.

How Does a Power Bank Work?

So, how does a power bank work in everyday use? The process has two stages: first the internal battery stores energy from a charger, and later the power bank converts and releases that stored energy through its output port when another device is connected.

While the power bank is charging, its control circuitry manages the incoming current and directs energy into the battery cells. The battery does not simply pass wall power straight through; it stores energy chemically so that the pack can provide electricity later when it is disconnected from the mains.

When you connect a phone or tablet, the power bank draws energy from its cells and sends it through conversion circuitry. A basic model may raise the battery cell voltage to a stable USB output, while a fast-charging model can provide higher negotiated voltage and current levels.

This explains how do power banks work with devices that have different charging needs. With standards such as USB Power Delivery (PD) or Quick Charge, the device and power bank communicate before higher power is delivered. The connected device then draws only the supported amount within that charging profile.

Some energy is lost as heat during conversion, so the usable output is lower than the theoretical capacity printed on the battery. Cable resistance, charging voltage, device efficiency, and temperature all affect how many real-world phone charges you get from a given mAh rating.

How to Charge Your Power Bank

Charging a power bank is straightforward, but the input rating, charger, cable, and temperature can affect speed and battery health. These steps help you recharge it reliably without adding unnecessary heat or waiting longer than needed.

1. Use the correct charger. Check the input rating printed near the port or in the manual. Connect a compatible cable to the input port and use a wall adapter that supports the required voltage and current. An underpowered adapter may work, but charging will usually take longer.
2. Charge from a stable mains source when practical. A wall adapter often provides more consistent power than a low-output USB port on an older laptop or monitor. This is especially useful for larger power banks that support higher input wattage.
3. Take advantage of fast charging—if supported. If your power bank has USB-C Power Delivery (PD) input, and your charger supports it, you can cut charging time significantly by using higher voltage and current.
4. Watch the indicators. Blinking LEDs commonly show charging progress, while solid lights may indicate a full battery. Models with digital displays can provide a more precise percentage, input wattage, or estimated time remaining.
5. Unplug the power bank when charging is complete. Modern protection circuits help manage charging, but there is little benefit in leaving the pack connected at 100% for long periods. Disconnecting it also reduces unnecessary heat and keeps the charger available for other devices.

If the power bank has not been used for months, check its remaining capacity before relying on it for a trip. Recharge it in advance and confirm that both the input and output ports work normally.

How to Charge Your Devices

If you are learning how to use the power bank, start by matching the output port and cable to your device. A compatible connection should begin charging automatically, although some models require a button press to wake the output.

2. Check the output rating. Standard USB output is sufficient for many phones, while tablets and laptops may need a higher-wattage USB-C PD port. If the power bank cannot provide enough power, charging may be slow or may pause while the device is under heavy use.
3. Use the right cable. Choose a good-quality USB-A, USB-C, Lightning, or other compatible lead that is designed for the power you expect to use. A damaged or low-specification cable can limit charging speed, cause intermittent connections, or create extra heat.
4. Plug in and allow the charging handshake to complete. Modern devices and compatible power banks communicate to select an appropriate charging profile. An LED or display may change briefly while this happens, then settle once power delivery is established.
5. Keep both devices cool. If the phone, laptop, cable, or power bank becomes unusually hot, disconnect it and allow it to return to a normal temperature. Heat can reduce charging efficiency and contributes to long-term battery wear.
6. Unplug when you have enough charge. Disconnecting the device preserves the remaining capacity in the power bank for later. If several devices are connected at once, remember that the total available output may be shared across ports.

In practical terms, how to use the power bank depends on three things: enough stored capacity, a port that supports your device, and a cable that can carry the required power. If all three match, charging should be simple and predictable.

Troubleshooting: Why It Might Not Charge

If your power bank does not charge itself or fails to charge another device, work through the basics before assuming the battery has failed. The most common causes are cables, adapters, dirty ports, temperature protection, or a deeply discharged battery.

Check the cable and charger

A damaged cable or underpowered wall adapter is one of the most common causes of charging problems. Swap in a cable and adapter that you know work with another device. If charging starts normally, the power bank itself may be fine.

Inspect the ports

Dust, lint, or a bent connector can prevent a secure electrical connection. Use a torch to inspect the port and remove loose debris gently with a soft, dry brush. Avoid sharp or metal objects that could damage the contacts.

Let it warm up (or cool down)

If the power bank is very hot or very cold, its protection system may pause charging. Move it to a dry, room-temperature environment and allow it to stabilise before reconnecting the charger or your device.

It might be too empty

A deeply discharged battery may enter low-voltage protection mode. Connect it to a suitable charger and leave it for at least 10 minutes before checking again. Some models also have a reset button or a specific restart procedure described in the manual.

It could be near end-of-life

Rechargeable cells gradually lose capacity after many charge cycles. If an older power bank drains quickly, refuses to hold charge, or behaves inconsistently despite known-good cables and chargers, the battery may be approaching the end of its useful life.

Stop using a power bank that is swollen, leaking, unusually hot, damaged, or producing an unusual smell. Do not keep testing it. Follow the manufacturer or local battery-disposal guidance instead of placing a damaged lithium battery in general household waste.

Why It Pays to Go with a Trusted Brand

A power bank combines rechargeable cells, power-conversion circuitry, charging ports, and safety controls in a compact enclosure. Build quality therefore matters. A well-designed model should provide clear specifications, appropriate protection features, and reliable output rather than simply advertising a large capacity number.

If you want a power bank that performs reliably, charges efficiently, and lasts for years, it’s worth choosing a model from a brand that’s known for quality and safety. Here are two solid options from Anker that strike a great balance between performance, size, and value:

Anker Nano Power Bank 10K, 30W

Roughly the size of a deck of cards at 4.09 × 2.06 × 1.02 in and 215 g, this 10,000 mAh Anker Nano Power Bank 30W disappears into a pocket but still delivers a punch.

Its built-in USB-C cable keeps cable clutter down, and the same lead handles 30W bi-directional Power Delivery —enough to refill the bank to 50% in about 45 minutes, or push an iPhone 15 to the same mark in half an hour.

A colour screen shows remaining capacity%, so you always know where you stand, while two extra ports (30W USB-C, 22.5W USB-A) let you top up a second device when needed. Compact, cable-ready and fast, it’s a fuss-free daily backup that should breeze through hundreds of cycles.

{{ component: "product", handle: "a1657-maggo-10000mah-power-bank", sku: "A1657051" }}

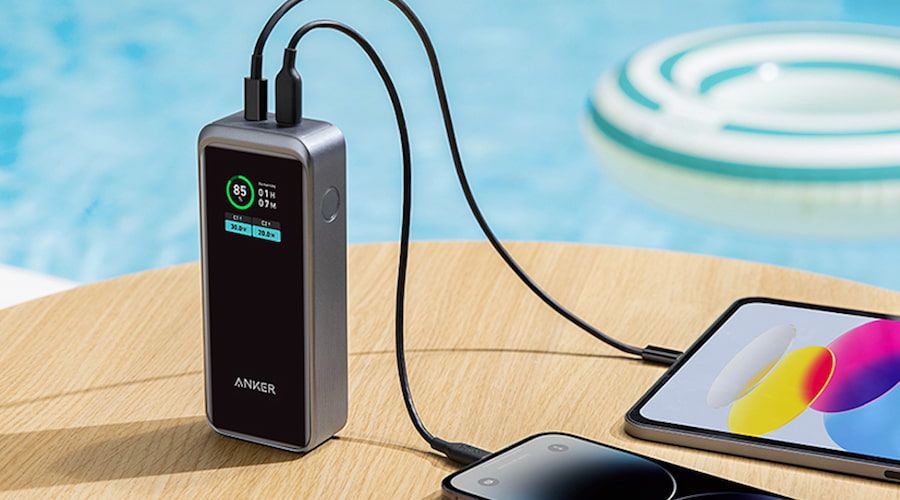

Anker Prime 20,000 mAh Power Bank

Travelling with a laptop, tablet and phone?

This Anker Prime 20,000 mAh Power Bank (≈ 74 Wh) keeps them all running and still meets the 100 Wh airline limit for carry-on batteries.

Two USB-C ports plus one USB-A deliver a combined 200W , enough to push a 16” MacBook Pro to 50% in about 40 minutes, and the pack itself recharges at up to 100W so downtime is minimal.

An integrated colour display gives real-time wattage, time-to-full and percentage read-outs, while Anker’s ActiveShield 2.0 constantly monitors temperature to keep everything safe. If you need desk-level charging speeds in your backpack, this is the dependable, future-proof option.

{{ component: "product", handle: "a110b-anker-prime-20k-220w-power-bank", sku: "A110BH11" }}

Best Practices to Extend the Power Bank’s Life

A few consistent habits can reduce unnecessary battery stress and help a power bank remain useful for longer. The aim is to avoid excess heat, extreme charge states, physical damage, and unreliable accessories.

• Avoid running it completely flat when possible. Lithium batteries generally experience less stress when they are not repeatedly pushed from full charge to complete depletion. Recharging before the battery reaches zero can also reduce the chance of triggering low-voltage protection.
• Unplug it once it is full. Built-in protection manages charging, but disconnecting the pack after it reaches full capacity avoids keeping it at a high state of charge for longer than necessary.
• Keep it cool and dry. Do not leave a power bank in a hot car, next to a heater, in direct sun, or in freezing conditions. Moderate room temperatures are more suitable for charging and storage.
• Store it partly charged if you will not use it for a long period. The original guide suggests around 50% as a practical storage level. Check it every few months because lithium batteries gradually lose charge even while idle.
• Use reliable chargers and cables that meet the relevant safety requirements for your region and support the power level you need. A cable that is damaged, poorly made, or underrated can reduce performance and create unnecessary heat.
• Keep the ports clean. Check them occasionally for lint or dust, especially if the power bank travels in a pocket or bag. Use a soft, dry brush or cloth rather than liquid cleaners or metal tools.

Conclusion

Understanding how does a power bank work makes portable charging much easier to manage. A power bank stores energy in rechargeable cells, uses control and conversion circuitry to deliver suitable USB power, and relies on compatible cables and charging standards to work efficiently with different devices.

Once you know how do power banks work and how to use the power bank correctly, the practical routine is simple: recharge it with a suitable adapter, keep it cool, match the output to your device, and stop using it if you notice swelling, damage, or abnormal heat.

FAQs

How do you use a power bank for the first time?

Charge the power bank with a compatible wall adapter and cable before relying on it away from home. Check the battery indicator, then connect your phone or other device to the correct output port. If the model has a power button, press it if charging does not start automatically.

For anyone learning how to use the power bank, it is also worth confirming the input and output ratings in the manual. That helps you choose the right charger and cable and avoids assuming every USB port supports the same speed.

How does my power bank work?

A power bank stores electrical energy in rechargeable lithium cells. When you connect another device, internal circuitry converts that stored energy into a controlled USB output. A battery management system monitors charging conditions, while compatible fast-charging standards can negotiate higher voltage or current when both devices support them.

How long will a power bank charge my phone for?

It depends on the power bank capacity, phone battery size, charging voltage, conversion efficiency, cable losses, and how much power the phone uses while charging. A 10,000 mAh rating therefore does not translate into exactly 10,000 mAh delivered to the phone battery.

As a rough example from the original guide, a 10,000 mAh power bank paired with a 4,000 mAh phone battery may provide around two full charges in real use rather than the theoretical 2.5, because energy is lost during conversion and transfer.
